CAT-10020DC

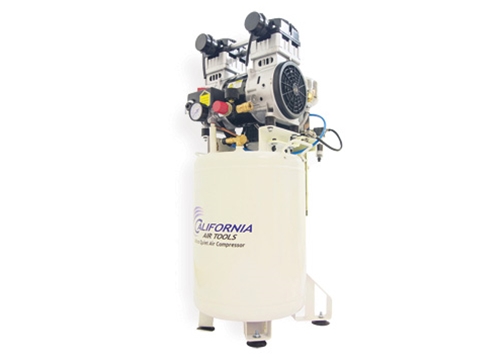

California Air Tools 2 Hp 10 Gallon Oil-Free Air Dryer Air Compressor

Alternate Views:

Send to a friend

15% Off

On sale!

$1,419.00

$1,202.00

This item is not in-stock.
Call for delivery date.

This item ships on a pallet.

Order to ship lead time for this model is 3-5 business days,
even if Expedited Shipping is selected

More info

2 hp (Rated/Running)
10.0 Gallon (38 L) Steel Air Tank
6.40 cfm @ 40 psi
5.30 cfm @ 90 psi
Ultra Quiet.....Only 70 Decibels!
Ideal for use in dental labs or other applications where maximum removal of moisture from the air line is a must
New heavy-duty SP Series motor designed to increase duty cycle and allow for longer continuous run time
Oil-Free, Dual Piston Pump is engineered for high performance and durability
Two Pressure Control Gauges
One Universal 1/4" Hose Connector
New heavy-duty Condor pressure switch
Activated Alumina desiccant air drying system
1 Year Manufacturer Limited Warranty

CAT-10020DC | The California Air Tools 10020DC ultra quiet and oil-free air compressor is designed to be one of the quietest 2 hp air compressors in the industry emitting only 70 decibels of sound. The powerful 2 hp motor operates at only 1,400 rpm creating less noise, less vibration, and less wear. The oil-free dual piston pump system is engineered for longevity, high performance and durability. The new, heavy-duty SP Series motor is designed for increased duty cycle and longer continuous run time. This motor is tested for a minimum pump life of 3,000+ hours before service, 25% more life before repair. The large 10 gallon steel air tank weighs only 75 lbs.

The air drying system features high grade Activated Alumina desiccant with a 4,000 hour life. The air dryer is specially designed to remove 80% of the water vapor from the air to protect sensitive tools and expensive machinery. To dry the air from the air compressor an aftercooler and air dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the air dryer.

The CAT-10020DC air compressor is ideal for anyone working indoors where noise and the need for removal of moisture is a major issue.

Ships complete with (2) air filters, no special assembly or installation service required.

PDFs Specifications Decibel Levels

California Air Tools 10020DC Owners Manual

Output at 40 psi		6.40 cfm
Output at 90 psi		5.30 cfm
Maximum Pressure		125 psi
Key Features		Air Dryer (Activated Alumina) Aftercooler (condenser)
Motor		2 Hp Electric (14.0 Amps)
Pump Type		Oil Free, Dual Piston
Voltage / Hertz		110 V / 60 Hz
Tank Capacity		10.0 gallons (38 L)
Tank Fill Rate (empty to full)		130 seconds
Decibel Level		70 dB
Dimensions		16" (L) x 23" (W) x 35" (H)
Unit Weight		91 lbs
Manufacturer Limited Warranty		1 Year

California Air Tools Air Compressor Decibel Levels Chart
