Benner-Nawman DBC-16H

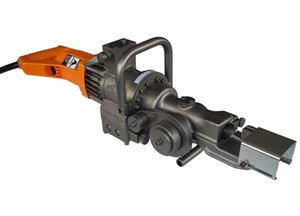

#5 (5/8") Rebar Cutter/Bender







Here’s another innovative & quality tool from Benner-Nawman and DIAMOND. This portable combination rebar cutter and bender provides jobsite cutting and bending of rebar (reinforcing steel) all in one tool. The unique design of this combination unit provides the operator the ability to cut and bend rebar for in-place rebar or stationary fabrication applications. Now you have the ability to cut and bend rebar protruding from a wall or column or just fabricate what you need on a table. Our powerful electric/hydraulic design is for heavy-duty #5 (16 mm) grade 60 rebar cutting and bending. Our competitions’ electric/mechanical design is a mediumduty tool. So, our in-place rebar ability and heavy-duty rating are features our competition can not match. It’s fast and easy to use, there is no changing of attachments, bends rebar up to 180 degrees. This tool was built with the quality & reliability you would expect from Benner-Nawman and DIAMOND. Included with this tool are a steel carrying case, tool kit, hydraulic oil, operations manual, and a one year parts and labor warranty.



Downloadable Spec/Sales Sheet



Downloadable Product Manual

 Maximum rebar size #5 or 5/8" (16mm) Grade 60
Cut / Bend Speed
3 seconds cutting  / 180 degrees in 7 seconds
Center Roller
2.42” (62 mm) Diameter (R 31)
Clearance Required (from surface) 1-3/4” (44.5 mm) cutting /  4.5” (115 mm) bending
Power Supply 115v 50/60 Hz –10 amps
Total Weight (kg)
40 lbs. (18.2)
Dimensions L x W x H (mm)
25-1/8” x 6-3/8” x 8-5/8”  (640 x 160 x 218)
