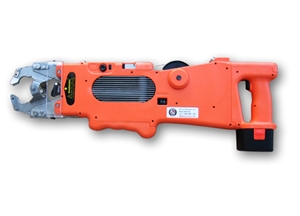

Benner-Nawman BNT-64

Rebar Tier

Benner-Nawman's patented design allows you to easily change the handle from the vertical work position to the horizontal work position in just a few moments.

Comparison to the MAX Tier

AUTOMATIC BENEFITS

• Reduces tying time, great for repetitious tying work.
• Reduces the risk of carpal tunnel and back injuries.
• One hand operation, allows other hand to hold rebar.
• Securely ties up to #10 (32mm) x #10 (32mm) rebars.
• Strong double tie wrap of 18 gauge galvanized wire.
• Consistent ties, no wire waste, only 1.6 seconds a tie.


Standard Equipment
 BN-TIER                          1 unit
 Wire spool                      5 units
 Battery charger              1 unit
 12V Battery pack            2 units
 Battery terminal cap       2 units
 Diagonal Cutter              1 unit
 Handle cap                     1 unit
 Screw                             1 unit
 Plastic inlay                    1 unit
 Shoulder Strap               1 unit
 Instruction manual         1 copy



Downloadable Spec/Sales Sheet

Downloadable Product Manual

Maximum Rebar Size		#10 (32mm) x #10 (32mm) with the #64 wire guide installed
Tool Weight		8.4 lbs (3.8 kg) with battery & wire spool
Tool Dimensions H x W x L (mm) for horizontal work		7.02” x 3.12” x 25.74” for horizontal work (180 x 80 x 660)
Tool Dimensions H x W x L (mm) for vertical work		11.31” x 3.12” x 22.62” for vertical work (290 x 80 x 580)
Number of Parts		75
Tying Speed		1.6 seconds
Tie Wraps/Wire Size		(2) tie wraps of 18 gauge or 1.0 mm
Wire Spool Length (m)		148 feet  (45m)
Ties Per Coil		120 to 200
Wire Carton		40 spools
Ties Per Battery Charge		750 ties (4-5 wire spools)
Torque Adjustment (increases wire tie tightness)		0-9
Standard Wire Guide		#32 wire guide ties maximum #6 x #6 rebar
Optional Wire Guides (right size wire guide decreases wire usage and tying speed)		#26 wire guide ties maximum #3 x #4 rebars #51 wire guide ties maximum #8 x #8 rebars #64 wire guide ties maximum #10 x #10 rebars
Battery Type		12V Ni-Cd (nickel-cadmium)
Charging Time		30 minutes
Battery Charger		110-240 VAC, 50/60Hz
Operating Humidity		90% or under
Operating Temperature		0 to 50 degrees C (32 to 122 degrees F)
Warranty Period		90 Days
