DBD-32X

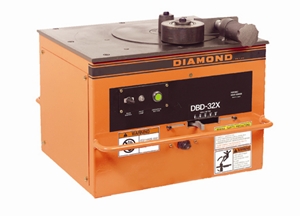

#9 (1-1/8") BN Products Heavy-Duty Electrical/Mechanical Rebar Bender
- Bend Up To #9 (1-1/8", 32 mm) Grade 60 Rebar
- Heavy-Duty Construction For Maximum Tool Life
- Standard Foot Pedal Control Switch For Hands Free Operation
- Dual Angle Locks For Repeating Bending Angle
- Dial-Type Angle Selector For 0-180 Degree Bends
- Standard Features Include Bend Counter with Reset, Voltage Meter, and Two Lifting Handles
- Ships Complete With Roller Set (7) In Two Steel Carrying Cases, Foot Pedal, Bender Cover, and Tool Kit
DBD-32X Rebar Bender Sales Sheet
DBD-32X Rebar Bender Parts Breakdown
DBD-32X Rebar Bender Owners Manual
SPECIFICATIONS
|
|
|
| Maximum Rebar Size |
|
#9 (1-1/8", 32 mm) Grade 60 |
| Bending Angle |
|
0-180 degrees |
| Bending Speed |
|
8 seconds (180 degrees) |
| Power Supply |
|
115 V, 50/60 Hz (12 Amps) |
| Tool Weight |
|
397 lbs (180 kg) |
| Dimensions (L x W x H) |
|
23" x 24.2" x 18.7" |
| Warranty |
|
1 Year |
| |
|
|
DBD-32X REBAR BENDER ROLLER SELECTION CHART
|
| Rebar Size |
Center Roller |
Moving Roller |
# Bent at One Time |
| #9 or 1-1/8" (32 mm) |
No. 5 |
No. 2 |
1 piece |
| #8 or 1" (25 mm) |
No. 5 |
No. 3 |
1 piece |
| #7 or 7/8" (22 mm) |
No. 5 |
No. 3 |
1 piece |
| #6 or 3/4" (20 mm) |
No. 4 |
No. 3* |
2 pieces |
| #5 or 5/8" (16 mm) |
No. 3 |
No. 5 |
2 pieces |
| #4 or 1/2" (13 mm) |
No. 2 |
No. 6 |
3 pieces |
| #3 or 3/8" (10 mm) |
No. 1 |
No. 7 |
4 pieces |
* Use a second No. 4 Roller on moving roller to produce 180 degree bends |
| Bending Roller Sizes for DBD-32X Only |
| Roller# (Part#) |
Outside Diameter |
| No. 1 (#1BR7090) |
1.95" |
| No. 2 (#1BR7091) |
2.73" |
| No. 3 (#1BR70931) |
3.50" |
| No. 4 (#1BR70941) |
4.31" |
| No. 5 (#1BR70951) |
5.06" |
| No. 6 (#1BR70961) |
6.13" |
| No. 7 (#1BR7097) |
7.44" |
DBD-32X | This heavy-duty portable rebar bender helps to save valuable man hours by effortlessly bending up to #9 or 1-1/8" (32 mm) Grade 60 rebar at the job site or in your shop. This trong electrical/mechanical bender has two preset angle locks for repeating the same angle bend. The lever-type angle selector can be set to accurately bend any angle from 0-180 degrees. Bends (4) each #3 rebar, (3) each #4 rebar, (2) each #5 or #6 rebar, and (1) each #7, #8, and #9 rebar at one time. The roller chart (shown above) makes it easy to select the correct combination of rollers to achieve a bending radius a minimum of five times the rebar diameter except for #9 rebar. A bend counter with reset, a voltage meter, and two lifting handles are standard features. The DBD-32X portable rebar bender ships complete with one set of bending rollers (7) in two steel carrying cases, foot pedal control switch for hands free operation, bender cover, and tool kit. Optional stand only (#BCS-32X) or combination stand for mounting a rebar cutter (#BCSE-32X) are available. BN Products backs this unit with a one year parts and labor warranty.
