Sanko GT-3030U (Box of 100)

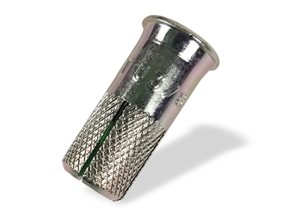

3/8" Shorty Drop-In Anchor
Similar to the CT-type anchor, these drop-in anchors are designed with a flanged (lipped) top for semi-flush installation in concrete. They are set exactly the same way with an expansion plug and a setting tool.
- Most trusted name in core drilling anchors. A recent study shows that Sanko anchors are 15% stronger than the competition.
- Versatile - will work with bolts and threaded rod in any length.
- Recessed - drill the hole the same length as the anchor for a flush finish. Drill deeper for more embedment into masonry projects.
- If anchor is no longer needed, simply plug or fill with cement to make the surface smooth again.
- For proper installation, we recommend the use of our setting tool.
- Values shown on the chart are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load. The concrete compressive strength should be 2,987 psi.
- Inside threads are machine rolled rather than cut for superior holding strength.
| Inside Thread | 3/8" |
| Thread Length | 1/2" |
| Outside Diameter x Length | 1/2" x 1-3/16" |
| Drill Bit Diameter | 1/2" |
| Embedment Depth | 1-3/16" |
| Tension Load | 2,866 (lbs) |
| Setting Tool Required | HT-3040 |
| Box Quantity | 100 |
| Carton Quantity | 800 |
