California Air Tools #CAT-10020

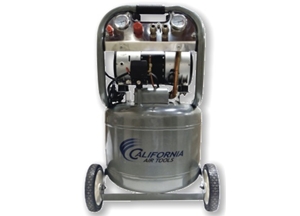

2 HP 10.0 Gallon Oil-Free Electric Air Compressor











The CALIFORNIA AIR TOOLS 10020 Ultra Quiet air compressor is designed to be one of the most quiet 2 horsepower air compressors in the industry having only 70 decibels of sound.

The powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear.

Each California Air Tools air compressor is independently tested to ensure a minimum life of 3000+ hours.

The Oil-Free Dual Piston Pump System is  engineered for longevity, high performance and durability. Two piston operation ensures that the unit operates at minimum rpm, resulting in optimum motor performance with minimum wear.

The 10.0 gallon air tank with wheel kit makes moving and storing very easy.

Because of the high air delivery this air compressor can be used with many tools. Nail Guns, Engraving Tools, Spray Guns, Air Drills, Air Wrenches, CNC machines and many other air driven tools.

This air compressor is ideal for anyone working in a Shop, Lab, Garage or any area where noise is a major issue and high air delivery is required!


  • Powerful - 2.0 HP (Rated/Running Motor)
  • 10.0 Gallon Vertical Steel Tank With Wheels
  • 7.00 CFM @ 40 PSI
  • 5.30 CFM @ 90 PSI
  • 125 PSI Maximum Pressure
  • 14.0 Amps - Low Amp Draw
  • Quick Recovery - 120 Second Recharge
  • Oil-Free Dual Piston Pump for cleaner air, superior tool operation, and lower maintenance costs
  • Pressure Control Meters allow you to monitor the pressure in the tank and outlet
  • 1/4" Universal Quick Connectors allow you to connect air hoses quickly and use two tools simultaneously
  • Thermal Overload Protector prevents motor damage from overheating
  • 70 Decibels

  • Ships complete with Wheel Kit & (2) air filters
  • 1 year limited manufacturer warranty




Output at 40 PSI
7.00 CFM
Output at 90 PSI
5.30 CFM
Maximum Pressure
125 PSI
Time To Fill Tank120 sec
Engine2 HP Electric
Engine Speed
1680 RPM
Voltage / Hertz110V / 60Hz - 14.0 Amps
Pump Type
Oil Free
Decibel Level
70 dB
Tank Capacity
10 G / 38 L
Weight88 lbs
Dimensions30" (H) x 19" (L) x 16" (W)
Warranty1 year (limited)
